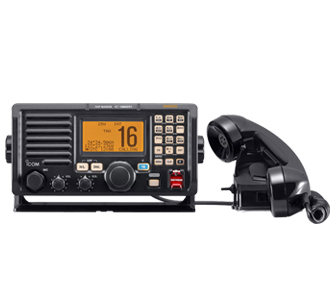

VHF IC-GM651

Frequency range

TX:  156.000–161.450MHz

RX:  156.000–163.425MHz

Ch. 70 receiver:  156.525MHz

Power supply requirements

12/24V DC (10.8–31.2V with PS-250)

Current drain
(with PS-250 (at 24V))

25W:        3.5A (approx.)

Max. audio:  1.0A (approx.)

Dimensions (W×H×D)
(Projections not included)

220×110×124.4 mm

Weight

IC-GM651:  1.6kg (approx.)

PS-250:     2.1kg (approx.)

Sensitivity

(at 20dB SINAD)

Radio:          –5dBμ emf typ

Ch. 70 receiver:  –5dBμ emf typ

Intermodulation rejection

More than 75dB

Audio output power

(10% dist. /4Ω load)

2W (at 10% distortion with a 4Ω load, used with PS-250)

RF output power

25/1W
