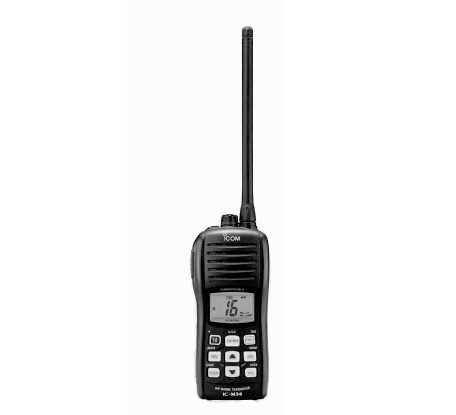

VHF IC-M34

Frequency range

TX:  156.025–157.425MHz

RX:  156.050–163.275MHz

Current drain
(with PS-250 (at 24V))

Transmit (High):   1.5A typ

Max. audio:   200mA typ

Power save:  20mA typical

Dimensions (W×H×D)
(Projections not included)

62×141.5×43 mm
2⁷/₁₆×5⁹/₁₆×1¹¹/₁₆ in

Weight

305g; 10.8oz
(With BP- 252, MB-109 and FA-SC58V)

Sensitivity

(at 12dB SINAD)

0.25μV typical

Intermodulation rejection

70dB typical

Audio output power (With an 8Ω load)

350mW typical

RF output power

5/1W (With BP-252)
2/1W (With alkaline cells)
