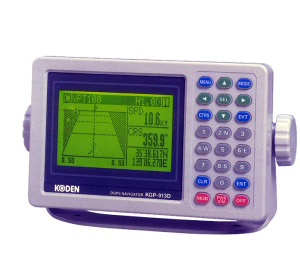

KODEN GPS/DGPS NAVIGATOR KGP-913MkII
Features
● SBAS, Satellite Based Augmentation Systems, are fully operated in USA (WAAS), Europe (EGNOS) and Asia (MSAS).
● Parallel 18 - channel receiver provides precise and quick positioning at any time.
● KGP-913MkIID has built-in beacon receiver. It can be used as a high-accuracy differential GPS navigator. Beacon stations all over the world are pre-installed (in countries where differential beacons are located).
Specifications
|
GPS receiver section (KGP-913MkII/913MkIID common) |
|
|
Receiving frequency |
1575.42 MHz ± 1 MHz |
|
Receiving channel |
Parallel 18-channel |
|
Sensitivity |
Better than -130 dBm |
|
Accuracy |
Position: |
|
SOG 0.1 kt rms |
|
|
Beacon receiver section (KGP-913MkIID only) |
|
|
Receiving frequency |
283.5 to 325.0 kHz |
|
Channel separation |
500 Hz step |
|
Sensitivity |
2.5 µV/m |
|
Signal detection (S/N) |
Better than 6 dB |
