HULL MOUNTED SONAR

HD825

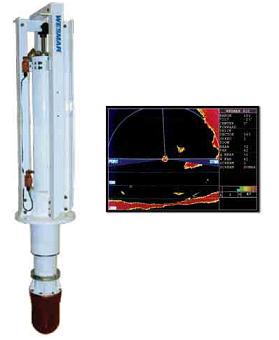

WESMAR HD825 SERIES SONAR

FEATURES
 WESMAR's new all digital searchlight sonar specially designed for purse seining, but highly effective for all sonar applications With Features such as:
•Lightening Fast Blackfin Internal Computer
• Quick, Hands-on Sonar Controls Keep You On the Fish, Not the Menu
• Push a button for a quick reverse for a second look
• New linear display unwraps the bottom for better view of fish and bottom hardness
SPECIFICATIONS



Frequency
Type of Hoist
Hoist Height
Retraction time
Soundbeam
HD825/160-6
160 KHz
Lead Screw
19 inches
20″
6.5°V 6.5°H
HD825/160-6 FT
160 KHz
Hydraulic
25.7 inches
3″
6.5°V 6.5°H
HD825/110-8
110 KHz
Lead Screw
22.0 inches
25″
6.5°V 9°H
HD825/110-8 FT
110 KHz
Hydraulic
33.5 inches
4″
6.5°V 9°H
HD825/60-8
60 KHz
Lead Screw
22 inches
25″
10°V 15°H
HD825/60-8 FT
60 KHz
Hydraulic
33.5 inches
4″
10°V 15°H
HD825/110-10
110 KHz
Hydraulic
58.3 inches
6″
5°V 7°H
HD825/60-10
60 KHz
Hydraulic
58.3 inches
6″
8.5°V 11°H
