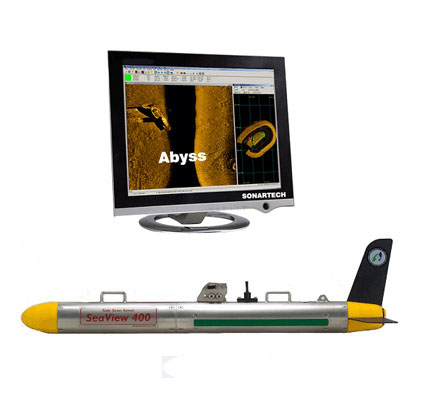

SIDE SCAN SONAR SEAVIEW 400 SERIES|
SIDE SCAN SONAR(SeaView400 Series)
|
||||
|
Model
|
SeaView400SS
|
SeaView400S
|
SeaView400M
|
|
|
Application
|
The Rescue & Leisure
|
Marine survey &
Institute
|
Military & Marine
Research
|
|
|
T
O
W
F
I
S
H
|
Body Material
|
Aluminium/SUS 316
|
SUS 316
|
SUS 316
|
|
Frequency
|
400kHz ± 10kHz
|
455kHz ± 20kHz
|
||
|
Max.Range(per side)
|
150m
|
150m
|
||
|
Pulse Length
|
100μsec,200μsec Chirp/ 25μsec, 50μsec, 100μsec CW
|
|||
|
Resolution
|
≥3.5cm
|
≥1.5cm
|
||
|
Voltage
|
110~220VDC, Max. 0.3A
|
|||
|
Towing Speed
|
Max.8knots
|
Max.16knots
|
||
|
Max.Operating Depth
|
500m
|
500m
|
||
|
Data Acquisition
|
12Bit / ±2.5V
|
|||
|
Transmission
|
16 channels, PCM
|
32 channels, PCM
|
||
|
Remote Command
|
9600BPS
|
|||
|
Towing Cable
|
Coaxial 1P,Power Line
Communication(PLC)
(Kevlar Cable)
|
Coaxial 1P,Power Line
Communication(PLC)
(Armored Cable)
|
||
|
Others
|
O-ring type safe
Recovery system
|
One touch safe
Recovery System
|
WINCH
|
|
|
Size
|
80cm(L),11.6cm(D))
|
128cm(L),11.6cm(D)
|
200cm(L),16cm(D)
|
|
|
Weight
|
14kg(Air),10kg(Water)
|
23kg(Air),18kg(Water)
|
70kg(Air),63kg(Water)
|
|
|
|
||||
|
I P U & T C U |
Main Board
|
P4 3.0GHz, RAM 512MB
|
||
|
VGA
|
32Bit, 64Mb
|
|||
|
Memory
|
HDD 120G, CD RW
|
|||
|
Monitor
|
15“ TFT LCD
|
19“ TFT LCD
|
||
|
LAN
|
10/100MBPS, Image wireless transmission
|
|||
|
O.S
|
Windows 2000P/Windows XP
|
|||
|
Data Receiving Speed
|
Max. 30 MBPS
|
|||
|
Navigator Input
|
NMEA0183
|
|||
|
Data Receiving Method
|
Demultiplex (DEMUX Board) Method
|
|||
|
Data Restoration Method
|
Phase – Locked Loop(PLL)
|
|||
|
Data Processing Type
|
16Bit.(Parallel Conversion)
|
16 Bit.(Parallel Conversion)
Max.2M
Word/sec
|
||
|
Receiving Information
|
16 Channels, Max.256 Channels
|
32 Channels, Max.256 Channels
|
||
|
Receiving Error
|
< 10-7 ea/sec Bit
|
< 10-7 ea/sec Bit
|
||
