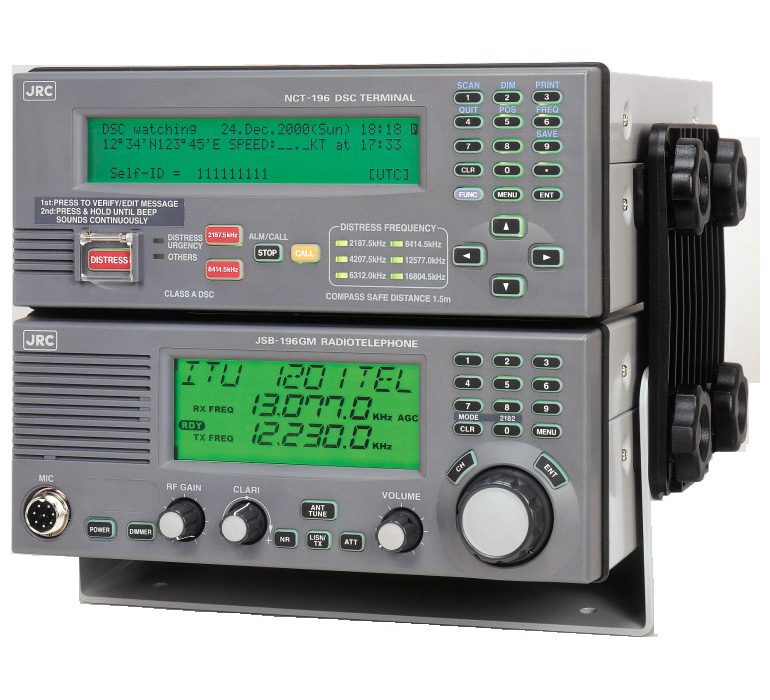

MF/HF RADIOTELEPHONE JSB-196GM

Frequency range

Tx: 1.6 to 27.5MHz

Rx: 0.1 to 29.9999MHz

Frequency increments

100Hz

Frequency tolerance

±10Hz or better

User definable channels

200ch(20ch 10Groups)

Emissions mode

J3E A1A, F1B:920 A1A:519 and H3E(Reception only)

Preset ITU channels

1722ch(SSB:283, F1B:920, A1A:519)

Scanning channel

20 user defined channels

Communication mode

Simplex and semi-duplex

Antenna impedance

50ohms

Operating temperature

15degC to +55degC

Power requirements

DC13.6V±10%, (12.3VDC to 15.0VDC), negative-grounded.
Tx:40A max   Rx:2A max
(Operable between 10.2VDC and 16.2VDC)

Compass safe distance

1.5m

Dimensions and mass

250mm(W) × 100mm(H) × 260mm(D), Approx. 7.4kg
