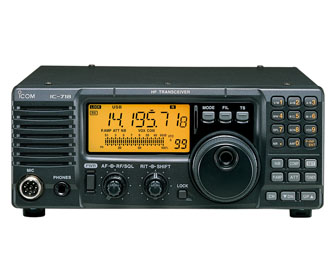

RADIOTELEPHONE IC-718

GENERAL

Frequency coverage
(Differs according to version)

Tx: 1.8, 3.5, 7, 10, 14, 18, 21, 24, 28MHz bands
Rx: 30kHz–29.999MHz

Modes

USB, LSB, CW, RTTY, AM

Frequency stability

Less than ±200Hz
(From 1 min. to 60 min. after power ON)

Maximum current drain

20A at 13.8V DC

Power supply requirement

13.8V DC ±15%

Antenna connector

SO-239 (50Ω)

Number of memory channels

101(99 regular, 2 scan edges)

Dimensions

240×95×239 mm;

Weight (approx.)

3.8kg; 8.4lb

TRANSMITTER

Output power r

SSB, CW, RTTY: 2–100W
AM: 2–35W

Spurious emissions

Less than –50dB

Carrier suppression

More than 40dB

Unwanted sideband

More than 50dB

Microphone connector

8-pin connector (600Ω)

RECEIVER

Sensitivity (typical)
Preamp ON SSB, CW, RTTY, AM: at 10dB S/N FM, WFM: at 12dB SINAD

SSB, CW, RTTY:1.8–29.999MHz 0.16μV
AM: 0.5–1.799MHz 13μV
    1.8–29.999MHz 2.0μV

Selectivity

SSB, CW, RTTY: 2.1kHz/–6dB
4.5kHz/–60Db

AM: 6.0kHz/–6dB

20kHz/–40dB

Spurious and image rejection

More than 70dB(1.8–29.999MHz)

AF power
(at 10% distortion with an 8Ω load)

More than 2.0W

External speaker connector

2-conductor 3.5 (d) mm (1⁄8″)/8Ω
