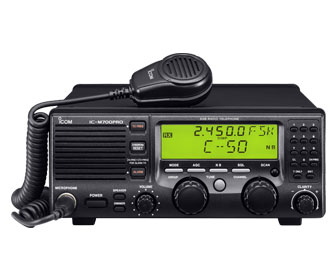

RADIOTELEPHONE IC-M700PRO

Frequency range

Tx: 1.6–2.9999 MHz, 4.0–4.9999 MHz, 6.0–6.9999 MHz,
8.0–8.9999 MHz, 12.0–13.9999 MHz, 16.0–17.9999 MHz,
18.0–19.9999 MHz, 22.0–22.9999 MHz, 25.0–27.5000 MHz

Rx: 0.5–29.9999 MHz

Power supply requirement

13.6V DC ±15% (negative ground)

Dimensions (W×H×D)
(Projections not included)

291.4×116.4×315 mm
11¹⁵/₃₂×4¹⁹/₃₂×12¹³/₃₂ in

Weight (approx.)

7.9kg; 17.4lb

Current drain (approx.)

Transmit (High): 30A at max. power
Max. audio output: 2.5A

Sensitivity
(at 10dB S/N; 1.8–29.999MHz)

J3E,J2B,F1B,R3E,A1A(12dB SINAD): 0.5Μv
H3E: 2.2μV

Selectivity

J3E, R3E, J2B, A1A: 2.3kHz/–6dB 4.2kHz/–60dB

Audio output powe

 (10% dist/ 4Ω load)

5W typical

RF output power (PEP) (output power differs depending on version)

150/60/20W (below 24MHz)
60/20W (above 24MHz)
